Automatic Electric Scissor Lift With 13m lifting height and 320kg load capacity for building

Product Categories
Hunan Jesh Heavy Industry Co.,Ltd
Contact Now

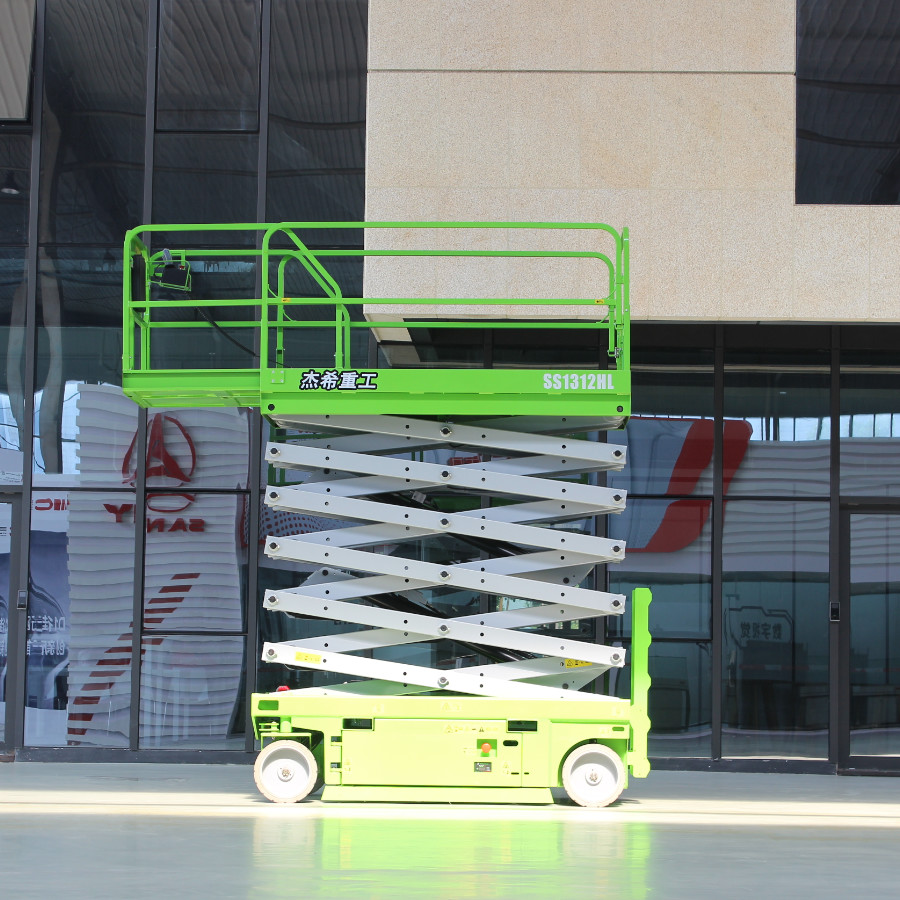

Automatic Electric Scissor Lift With 13m lifting height and 320kg load capacity for building

Brand Name : Jesh

Model Number : SS1312HL

Certification : CE,ISO,IPAF

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1500 pcs per month

Delivery Time : 15 days

Packaging Details : standard factory package

Lift drive / actuation : electric ,hydraulic

Platform extendable : 0.9m

platform width : 1.15m

Max.drive speed : 3.5km/h

Max.Working height : 14.8m

Max.Platform height : 12.8m

Platform capacity : 320kg

capacity on extension : 120kg

battery : 24v/225ah

Engine : optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar

OEM,ODM : available

Contact Now

Automatic Electric Scissor Lift With 13m lifting height and 320kg load capacity for building

Product Specification:
Mainly used to installing, repairing and cleaning high aerial
equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving
working efficiency and making aerial working more convenient.

Technical Parameters

Model SS1312HL
Dimentions Length 2.49m × Width 1.15m × Height 2.61m ( Height up to 12.8m)
Working Height 14.8m
Platform Height 12.8m
Platform Length 2.36m
Platform Length-Extended 3.26m
Platform Extendable 0.9m
Platform Width 1.15m
Height -Unfolded 2.35m
Height-rails folded 2.08m
Wheelbase 1.93m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 320kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 59/45sec
Turning Radius(Inside/outside) 0/2.17m
Tire 40.5x12.7cm
Power Electric Hydraulic
Engine Optional(Perkins,Kohler,Deutz,Commins,Yanmar)
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 3061kg
Battery 24V/260Ah

Automatic Electric Scissor Lift With 13m lifting height and 320kg load capacity for building

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online

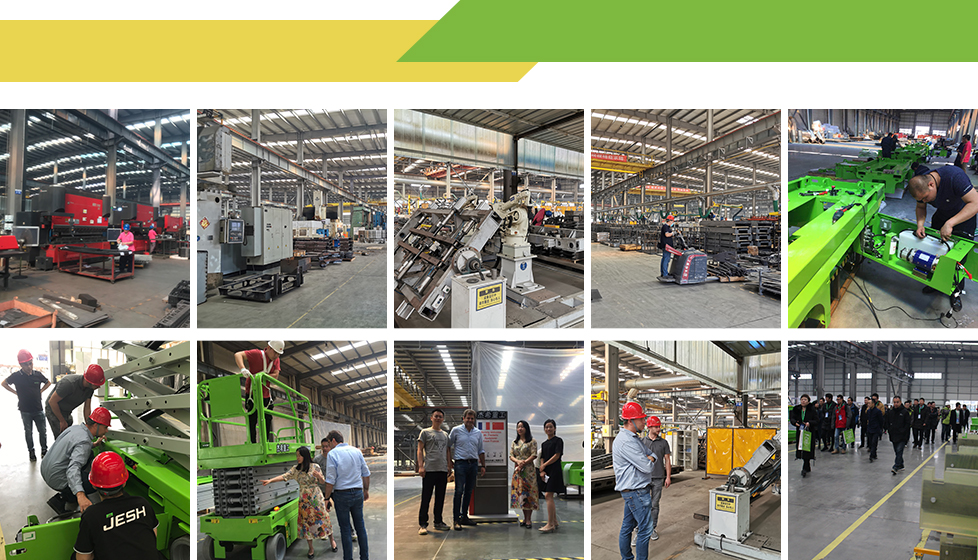

Company Information

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.

Automatic Electric Scissor Lift With 13m lifting height and 320kg load capacity for building
